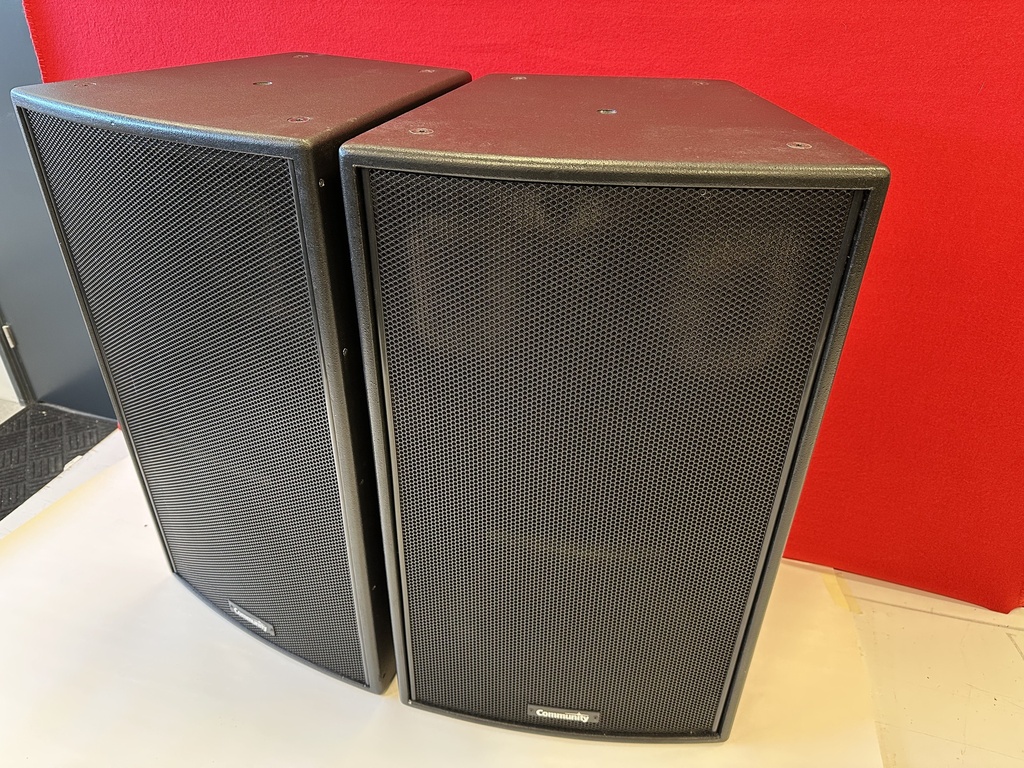

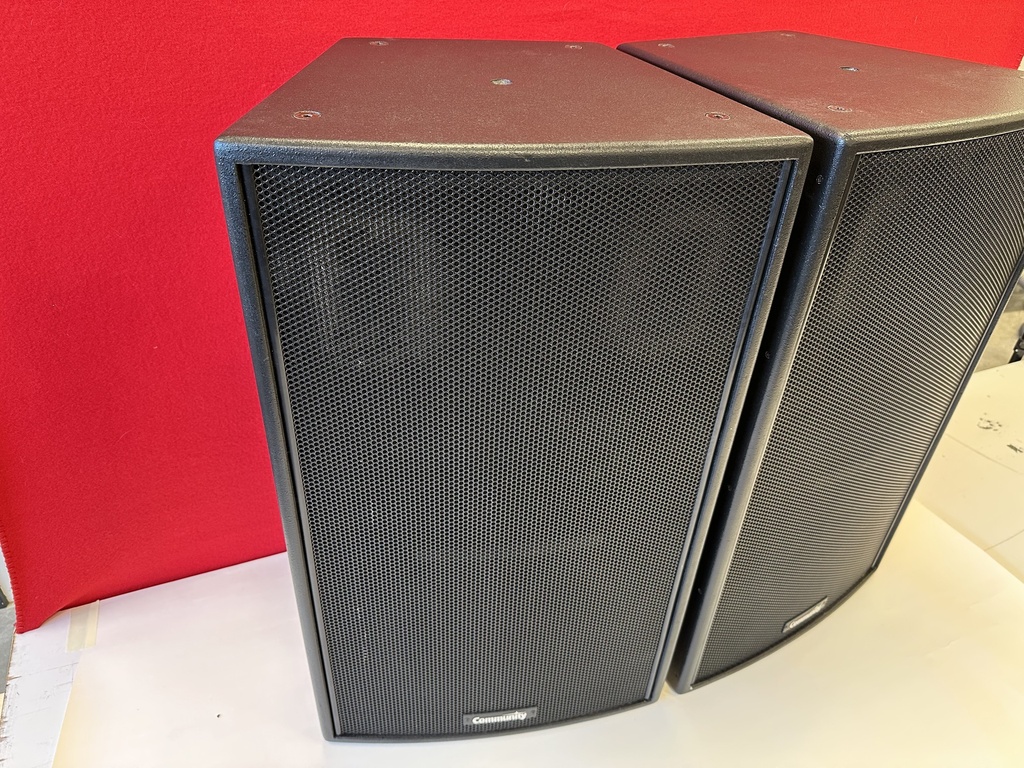

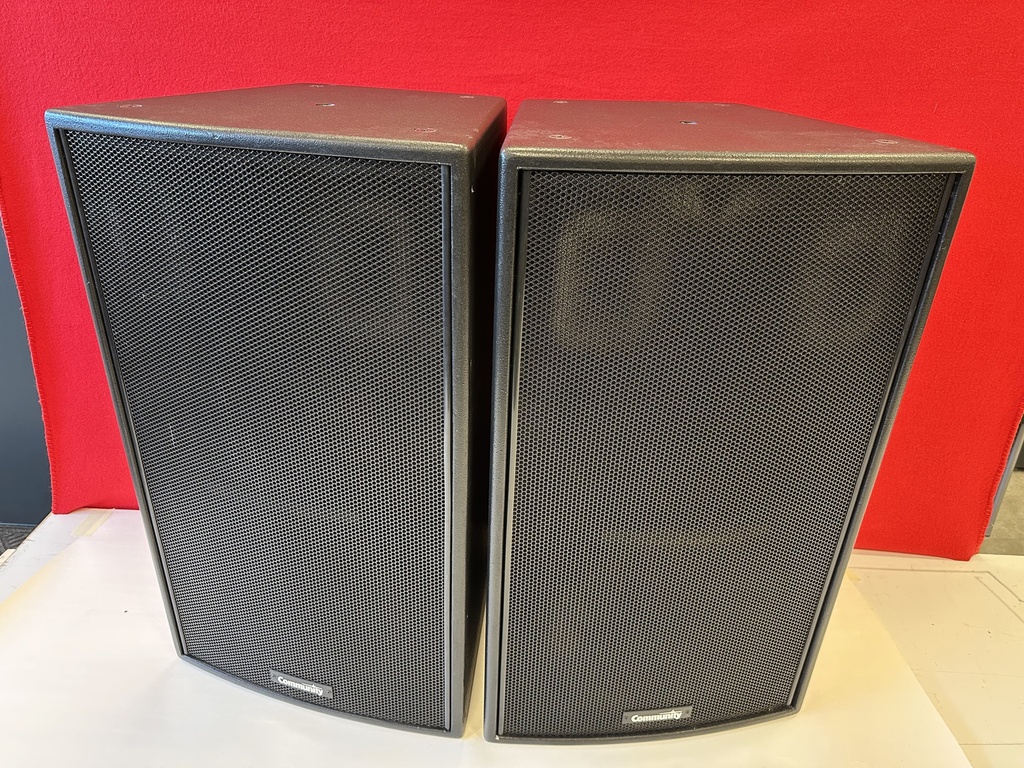

Community Veris 3294 (rebuild)

Community VERIS-3294 12-inch 3-Way Speaker 200W

The VERIS-3294 is a three-way, full-range loudspeaker system suitable for use in a wide variety of fixed installations. Featuring horn loaded mid-range and high-frequency drivers, the VERIS-3294 provides improved pattern control over two-way designs, making it well suited when intelligibility and musical clarity prove challenging, such as in large, reverberate spaces. The 90º x 40º pattern provides controlled coverage, particularly useful in rooms that are wider than they are deep. Extremely powerful with exceptionally low distortion, the VERIS-3294 is ideal for

applications such as contemporary worship services, music and dance clubs, theatrical sound reinforcement, and other demanding work. Its trapezoidal design allows it to be clustered with like units, forming powerful arrays. The enclosure may be suspended from its M10 threaded rigging points using a variety of optional hardware available from Community, or it may be installed using a third-party mounting device.

Featuring extended high frequency response, low distortion output, a tight, punchy bass response, and precise pattern control, the VERIS-3294

is a versatile performer for use in music and speech applications that require high quality, high power sound reinforcement at an affordable price. It includes a rotatable horn design that allows optimal dispersion in either vertical or horizontal mounting positions.

Specs

• Loudspeaker Type: Three-way, full-range, trapezoidal,
• vented bass, user rotatable horn
• Operating Range: 60 Hz to 18 kHz (-10 dB)
• Frequency Response: 80 Hz to 16 kHz (-3 dB)
• Max Input Ratings: 200W continuous, 500W program
• 40 volts RMS, 80 volts momentary peak
• Sensitivity (1W/1m): 99 dB (100 Hz to 12.5 kHz) free space
• Maximum Output: 122 dB SPL / 128 dB SPL (peak)
• Nominal Impedance: 8 ohms
• Minimum Impedance: 5.1 ohms @ 140 Hz
• Nominal –6dB
• Beamwidth: 90° H x 40° V (in vertical position)
• Crossover Frequencies: 600 Hz / 3 kHz
• Recommended Signal
• Processing:
• 60 Hz, 24 dB/octave Butterworth
• high pass filter

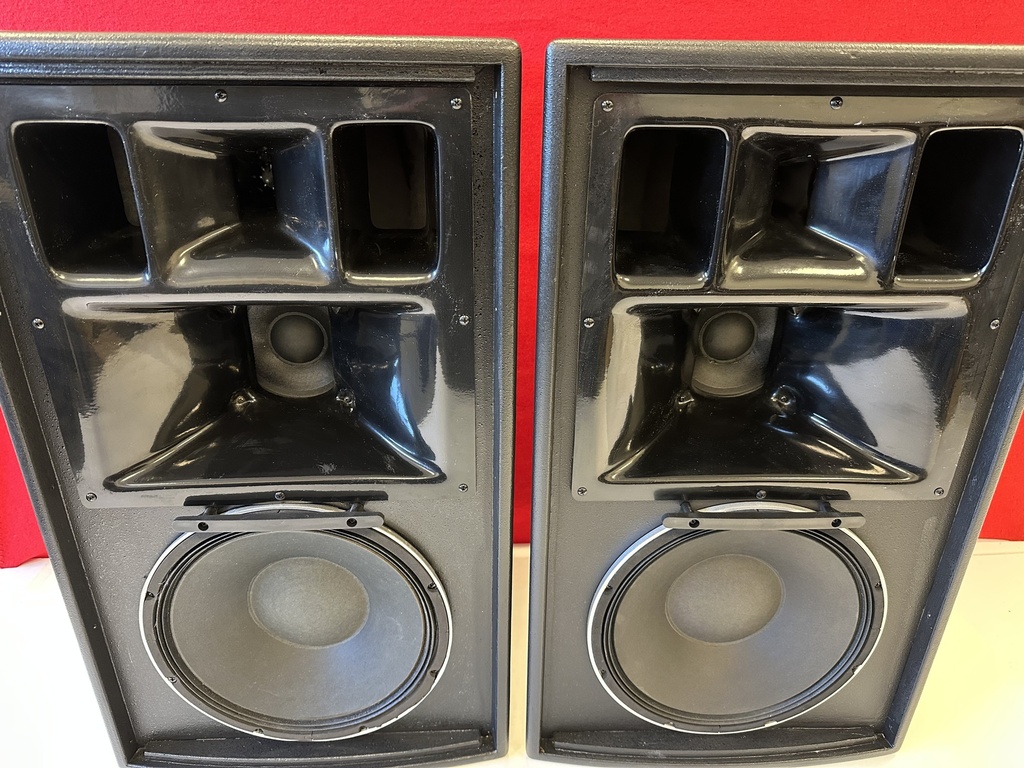

• Drivers:
• LF 1 x 12-inch cone
• MF 1 x 6.5-inch
• HF 1 x 1-inch
• Driver Protection: DYNA-TECH protection circuitry

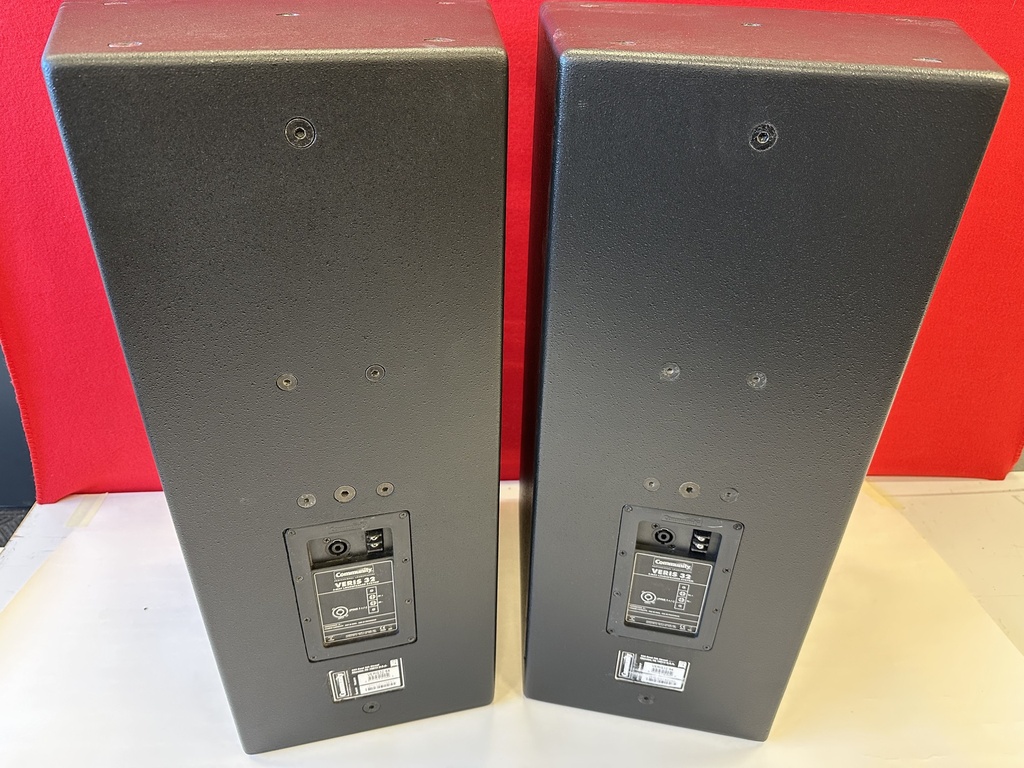

• Input Connection: NL4-compatible locking connector with
• terminal strip in parallel
• Controls: None
• Enclosure: Trapezoidal (22.5° included angle)
• 18mm, 11-ply cross-laminated birch
• Mounting/Rigging
• Provisions:
• 13 x M10 threaded rigging fittings
• 4 x M8 threaded fittings for third-party
• suspension products
• Finish: Catalyzed polyester two-part paint,
• black or white
• Grille: Powder coated steel, black or white finish
• Required Accessories: None
• Supplied Accessories: None
• Optional Accessories:
• VB-Y32 U-shaped yoke bracket
• VB-VY32 vertical yoke bracket
• CMKIT ceiling mount kit
• VB-TILT tilting bracket
• VB-VST versatilt bracket
• VFKIT vertical flying kit
• M10EYBLTKIT 10mm eyebolt kit
• STKIT seat track kit
• Dimensions:
• Height:
  • 29.3 inches (744 mm)
• Width:
• • 17.4 inches (441 mm)
• Depth:
• • 15.4 inches (390 mm)
• Weight: 54.1 lbs (25.4 kg)
