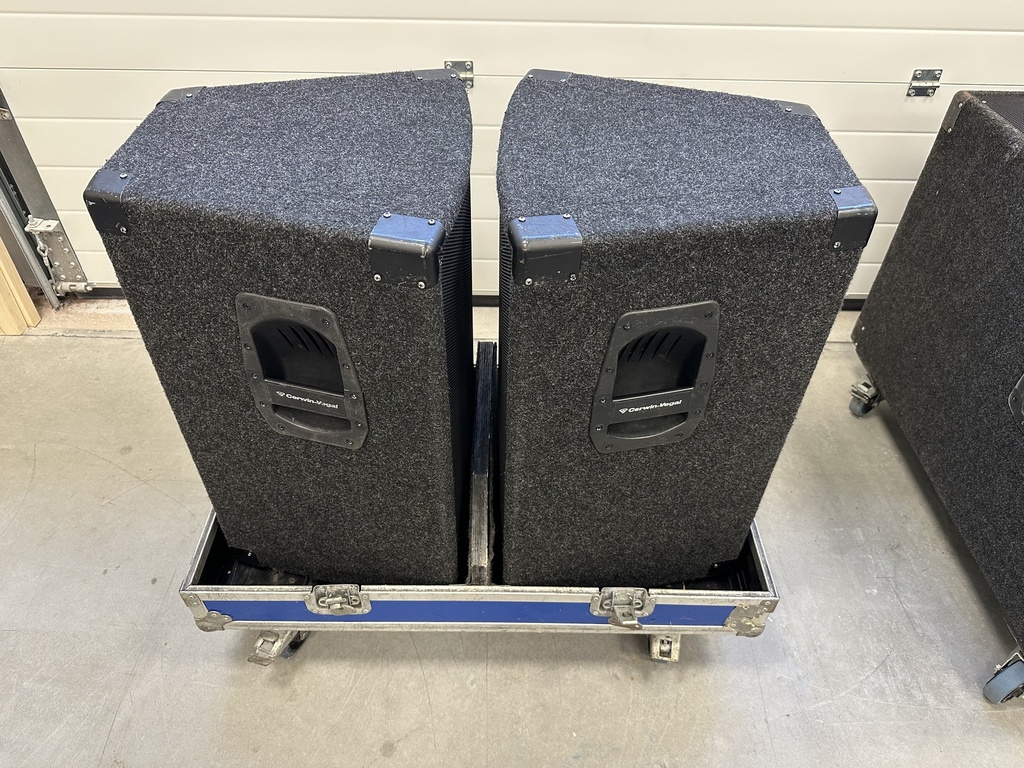

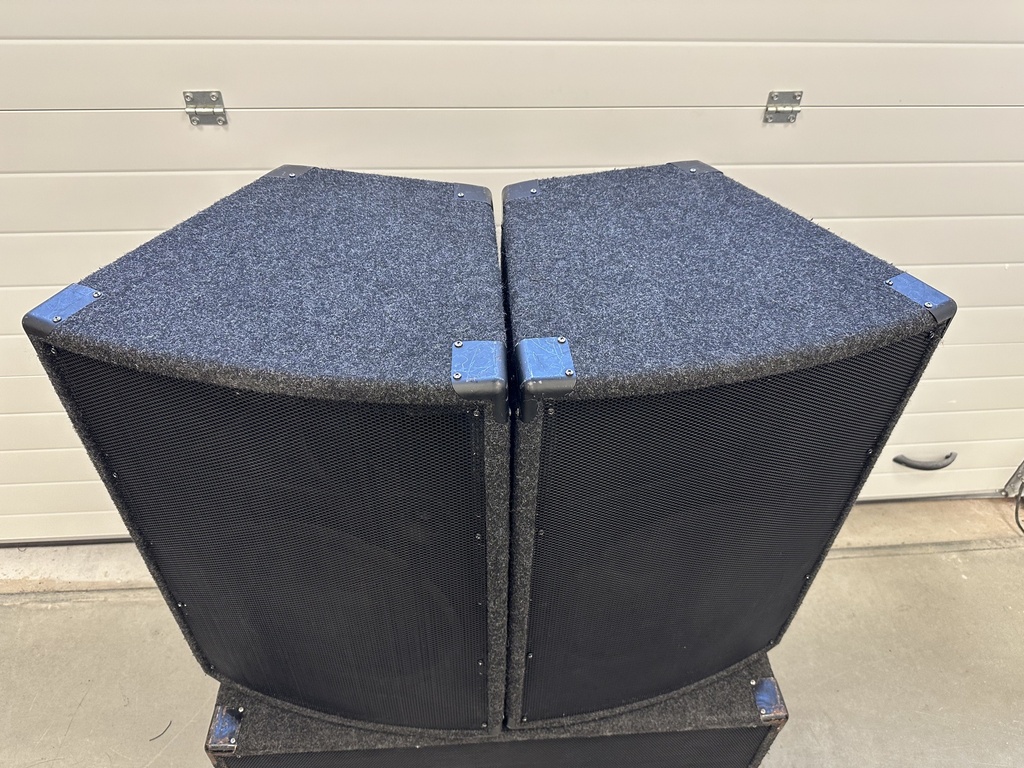

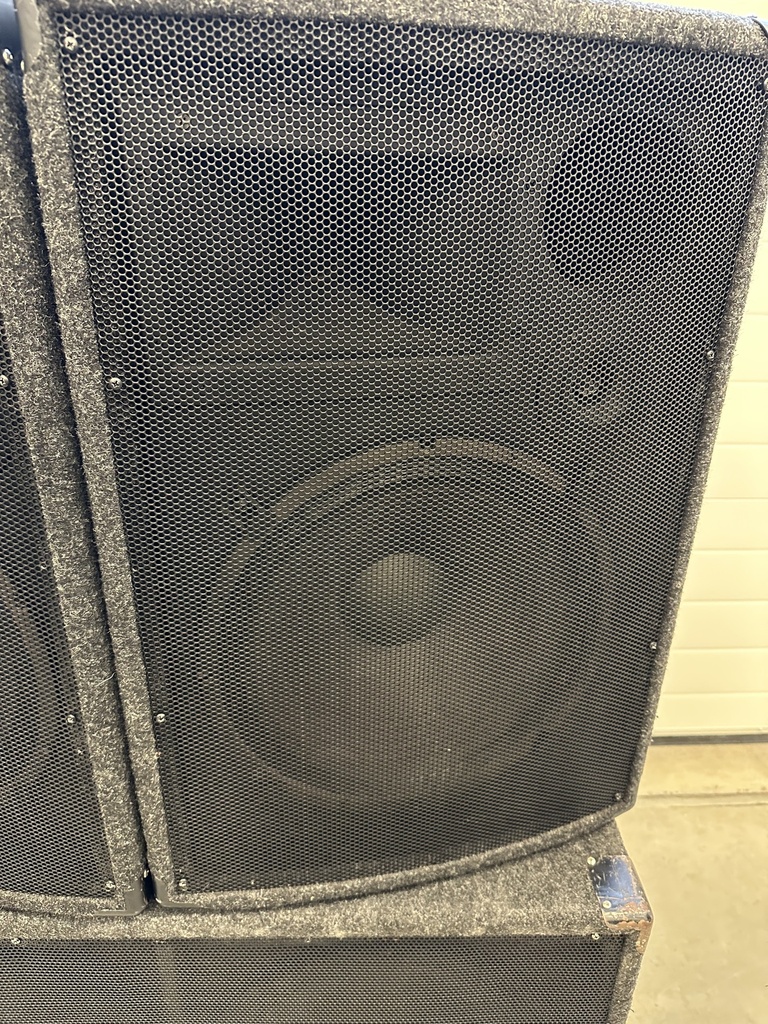

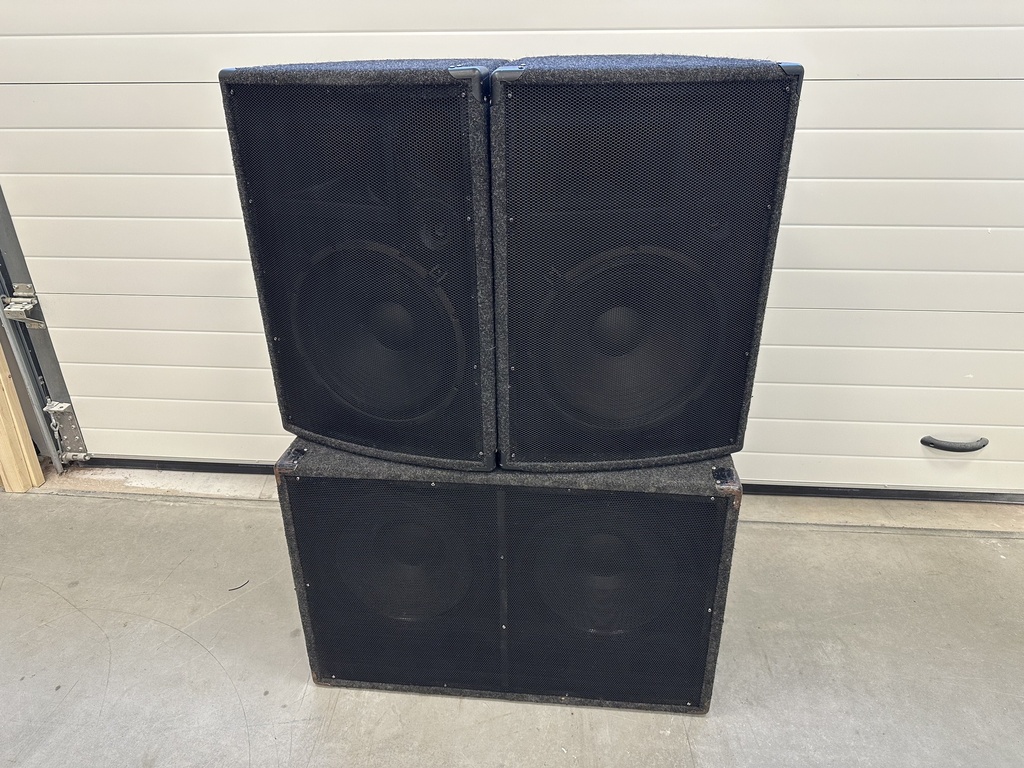

The cabinet is true to the ProStax line with trapezoidal shape and curved front featuring a perforated steel protective grille. Included are four built-in ATM Fly-Ware internal braces for cabinet suspension. Connecting eye bolts are available separately from Cerwin-Vega.
FEATURES:
- Frequency Response: 50 Hz 20 kHz, 3 dB
- Power Handling: 600 watts continuous program power (unclipped and unprocessed music power)
- Sensitivity (1 watt/meter): 101 dB
- SPL (rated input at 1 meter): 128 dB (short term)
- Nominal Dispersion (degrees): 60 x 60 at 2 kHz
- Impedance: 8 ohms nominal
- Speaker Components: Low Frequency: (1) Eminence Delta 15A, a 15 inch woofer with 3 inch voice coil. Mid Frequency: (1) M-130, a 2 inch phenolic diaphragm compression driver. High Frequency: (1) HF-7, a 1 inch horn-loaded ferrofluid-cooled tweeter with dual-slot phasing plug
- Crossover: 1.5 kHz and 6.5 kHz passive crossover
- Connections: (2) Neutrik Speakon 4-pin connectors
- Enclosure: Trapezoid cabinet, 3/4 inch plywood, interlocking corners, and full steel perforated grille
- Working Load Limit: 204 kg (450 lb)
- Fuse Protection: High-frequency auto-reset PTC
- Dimensions (H x W x D): 71.8 cm x 49.5 cm x 42.5 cm (28.25 x 19.50 x 16.75 inches)
- Weight: 34 kg (73 lb)
Specificaties
| Merk | Cerwin Vega |
| Condition | Rebuild |
